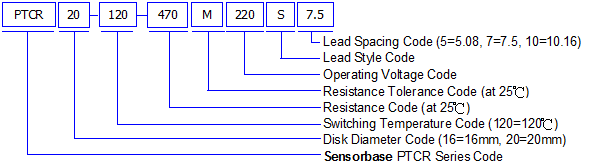

PTC Thermistor Part Numbering System
| Reference Temperature : 75℃, 80℃, 100℃ & 120℃ Outside Diameter : D=6.5 ～ 20mm Lead Wire Length=25mm R25 Resistance Range : 2 ～ 2700 Ohm R25 Tolerance : ±15% & ±20% |
| Part Number 產 品 編 號 |
Disk Diameter 直 徑 |
Switching Temperature 開 關 溫 度 |
Zero Load Resistance 零 負 載 阻 值 |
Resistance Tolerance 誤 差 |
Voltage 電壓 |

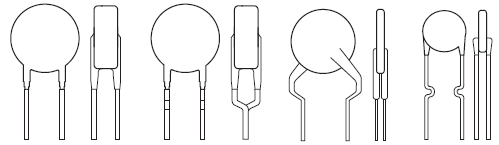

Package Style 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| PTCR20-120-470M220S7.5 | 20mm | 120℃ | 47 Ohm | 20% | 220V | Straight Style | Contact us |
| PTCR10-120-8R0N265S5.0 | 10mm | 120℃ | 8 Ohm | 25% | 265V | Straight Style | Available |
| PTCR14-120-101N220S7.5 | 14mm | 120℃ | 100 Ohm | 25% | 220V | Straight Style | Contact us |
| PTCR09-70-220N265S5 | 9mm | 70℃ | 22 Ohm | 25% | 265V | Straight Style | Contact us |
| PTCR10-100-100N265S5 | 10mm | 100℃ | 10 Ohm | 25% | 265V | Straight Style | Contact us |
