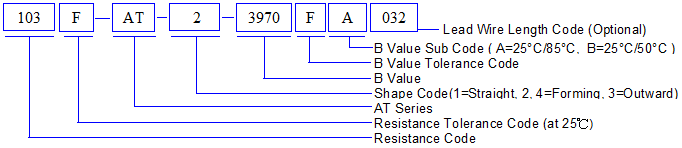

AT Series Part Numbering System
| Part Number 產 品 編 號 |
Ohm Value @25C 阻 值 |
Tolerance 誤 差 |
B Constant B 值 |
B Constant Tolerance B 值 誤 差 |
B Constant Calculation Method B 值 計 算 方 法 |

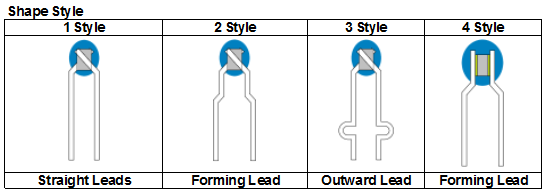

Package 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| 103F-AT-1-3435FA | 10K Ohm | 1% | 3435 | 1% | 25/85 | AT-1 | Available |
| 103F-AT-2-3435FA | 10K Ohm | 1% | 3435 | 1% | 25/85 | AT-2 | Available |
| 103F-AT-2-3970FA | 10K Ohm | 1% | 3970 | 1% | 25/85 | AT-2 | Contact us |
| 502F-AT-2-3375FA | 5K Ohm | 1% | 3375 | 1% | 25/85 | AT-2 | Contact us |
| 503F-AT-2-4060FA | 50K Ohm | 1% | 4060 | 1% | 25/85 | AT-2 | Contact us |
| 682H-AT-2-3977FA | 6.8K Ohm | 3% | 3977 | 1% | 25/85 | AT-2 | Contact us |
