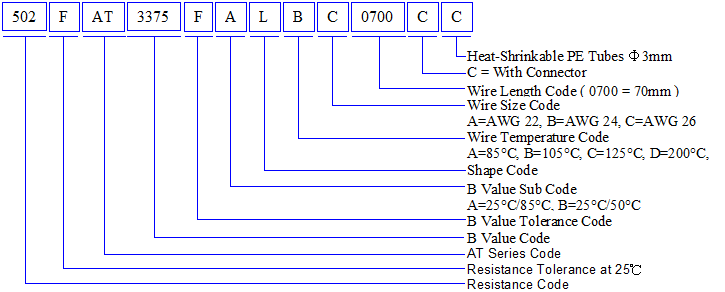

Probe Assembly Part Numbering System
| Part Number 產 品 編 號 |
Ohm Value @25C 阻 值 |
Tolerance 誤 差 |
B Constant B 值 |
B Constant Tolerance B 值 誤 差 |
B Constant Calculation Method B 值 計 算 方 法 |
Package Style 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| 502FAT3375FAL0400 | 5K Ohm | 1% | 3375 | 1% | 25/85 | Lug Terminal | Available |
| 502FAT3970FALBB6550CC | 5K Ohm | 1% | 3970 | 1% | 25/85 | Lug Terminal | Contact us |
| 103FAT3435FAEBB0830 | 10K Ohm | 1% | 3435 | 1% | 25/85 | Resin Dipping | Contact us |
| 103FAT3435FAACB4001CJ | 10K Ohm | 1% | 3435 | 1% | 25/85 | Copper Resin Case | Contact us |
| 103FAT3435FMBB1501 | 10K Ohm | 1% | 3435 | 1% | 25/85 | Epoxy Resin Case | Contact us |
| 103GAT3435FAQAA3000C | 10K Ohm | 1% | 3435 | 1% | 25/85 | ABS Resin Case | Contact us |
