PPTC Resetable Fuse Part Numbering System
| PPTC devices offer wide range in holding currents from 0.1 to 5.0 amps and voltages from 6 to 250 volts. Solid state, Faster time, Low cost. Disc, Square & SMD Type Package available |
| Part Number 產 品 編 號 |
Voltage 電壓 |
Holding Current 保持電流 |
Tripping Current 觸發電流 |

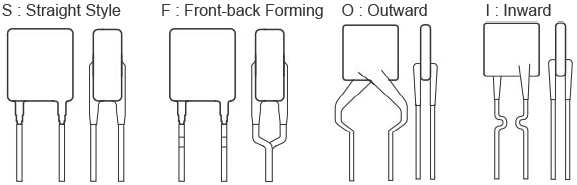

Package Style 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|
| SBE250-020S | 250V | 0.02A | 0.045A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.04A | 0.08A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.06A | 0.12A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.08A | 0.16A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.09A | 0.18A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.11A | 0.22A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.12A | 0.24A | Straight Style | Contact us |
| SBE250-145F | 250V | 0.145A | 0.29A | Front-back Forming | Available |
| SBE250-020S | 250V | 0.18A | 0.36A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.20A | 0.40A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.30A | 0.60A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.40A | 0.80A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.50A | 1.0A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.60A | 1.2A | Straight Style | Contact us |
| SBE250-020S | 250V | 0.80A | 1.6A | Straight Style | Contact us |
| SBE250-020S | 250V | 1.0A | 2.0A | Straight Style | Contact us |
| SBE250-020S | 250V | 1.5A | 3.0A | Straight Style | Contact us |
| SBE250-020S | 250V | 2.0A | 4.0A | Straight Style | Contact us |
