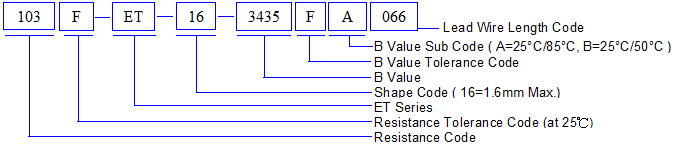

ET Series Part Numbering System
| Part Number 產 品 編 號 |
Ohm Value @25C 阻 值 |
Tolerance 誤 差 |
B Constant B 值 |
B Constant Tolerance B 值 誤 差 |
B Constant Calculation Method B 值 計 算 方 法 |
Package 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| 502F-ET-20-3950FB | 5K Ohm | 1% | 3950 | 1% | 25/50 | D=2.0mm | Contact us |
| 103F-ET-16-3435FA045 | 10K Ohm | 1% | 3435 | 1% | 25/85 | D=1.6mm | Contact us |
| 103FET163435FA06633R | 10K Ohm | 1% | 3435 | 1% | 25/85 | D=1.6mm | Available |
| 103FET163435FA08833R | 10K Ohm | 1% | 3435 | 1% | 25/85 | D=1.6mm | Available |
| 104F-ET-16-4132FA030 | 100K Ohm | 1% | 4132 | 1% | 25/85 | D=1.6mm | Contact us |
