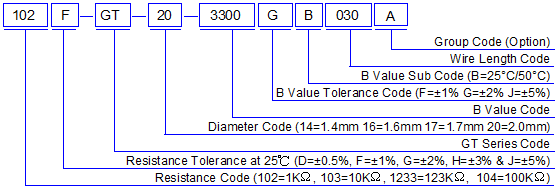

GT Series Part Numbering System
| Part Number 產 品 編 號 |
Ohm Value @25C 阻 值 |
Tolerance 誤 差 |
B Constant B 值 |
B Constant Tolerance B 值 誤 差 |
B Constant Calculation Method B 值 計 算 方 法 |
Package 封 裝 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| 102F-GT-20-3300GB030 | 1K Ohm | 1% | 3300 | 1% | 25/50 | D=2.0mm | Contact us |
| 103F-GT-12-3435FA | 10K Ohm | 1% | 3435 | 1% | 25/85 | D=1.2mm | Available |
| 103H-GT-16-3977FB | 10K Ohm | 3% | 3977 | 1% | 25/50 | D=1.6mm | Contact us |
| 503G-GT-14-3950FB | 50K Ohm | 2% | 3950 | 1% | 25/50 | D=1.4mm | Contact us |
| 104F-GT-20-4267FA | 100K Ohm | 1% | 4267 | 1% | 25/85 | D=2.0mm | Contact us |
