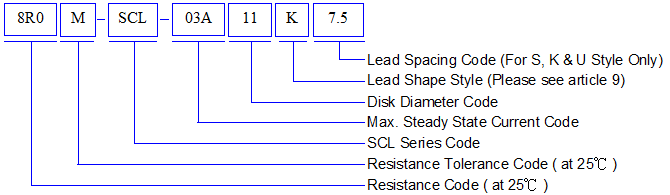

SCL Series Part Numbering System
| Part Number 產 品 編 號 |
Ohm Value @25C 阻 值 |
Tolerance 誤 差 |
Steady Current 穩 定 電 流 |
Disk Diameter 直 徑 |

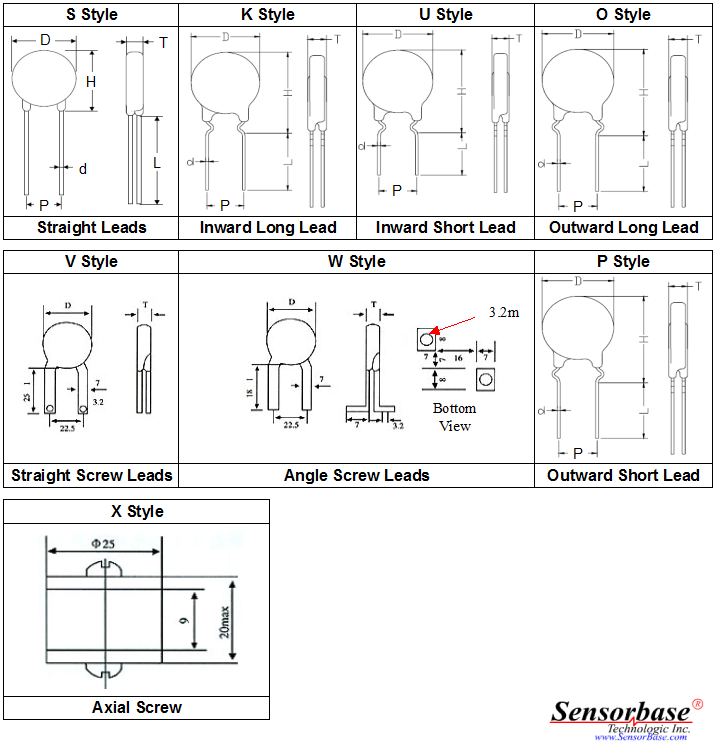

Lead Shape Style 引 線 形 式 |
Lead Spacing 引 線 間 距 |
Specification 規 格 書 |
|---|---|---|---|---|---|---|---|
| 5R0M-SCL-04A11U7.5 | 5 Ohm | 20% | 4A | D=11mm | U Style | 7.5mm | Contact us |
| 8R0M-SCL-03A11K7.5 | 8 Ohm | 20% | 3A | D=11mm | K Style | 7.5mm | Available |
| 100M-SCL-01A07K5.0 | 10 Ohm | 20% | 1A | D=7mm | K Style | 5.0mm | Contact us |
| 100M-SCL-04A13K7.5 | 10 Ohm | 20% | 4A | D=13mm | K Style | 7.5mm | Contact us |
| 150M-SCL-02A11K7.5 | 15 Ohm | 20% | 2A | D=11mm | K Style | 7.5mm | Contact us |
| 300M-SCL-2.5A13K7.5 | 30 Ohm | 20% | 2.5A | D=13mm | K Style | 7.5mm | Contact us |
